基于React Three Fiber实现SLAM手动闭环检测

详细介绍如何使用React Three Fiber构建交互式SLAM手动闭环检测系统，通过可视化点云配准实现精确的回环检测与建图优化

在 SLAM（Simultaneous Localization and Mapping，同时定位与建图）系统中，闭环检测是确保建图精度和一致性的关键技术。传统的自动闭环检测方法虽然高效，但在复杂环境或特征稀疏场景下往往表现不佳。本文将详细介绍如何基于 React Three Fiber 构建一个交互式的手动闭环检测系统，通过可视化点云配准来实现精确的回环参数优化。

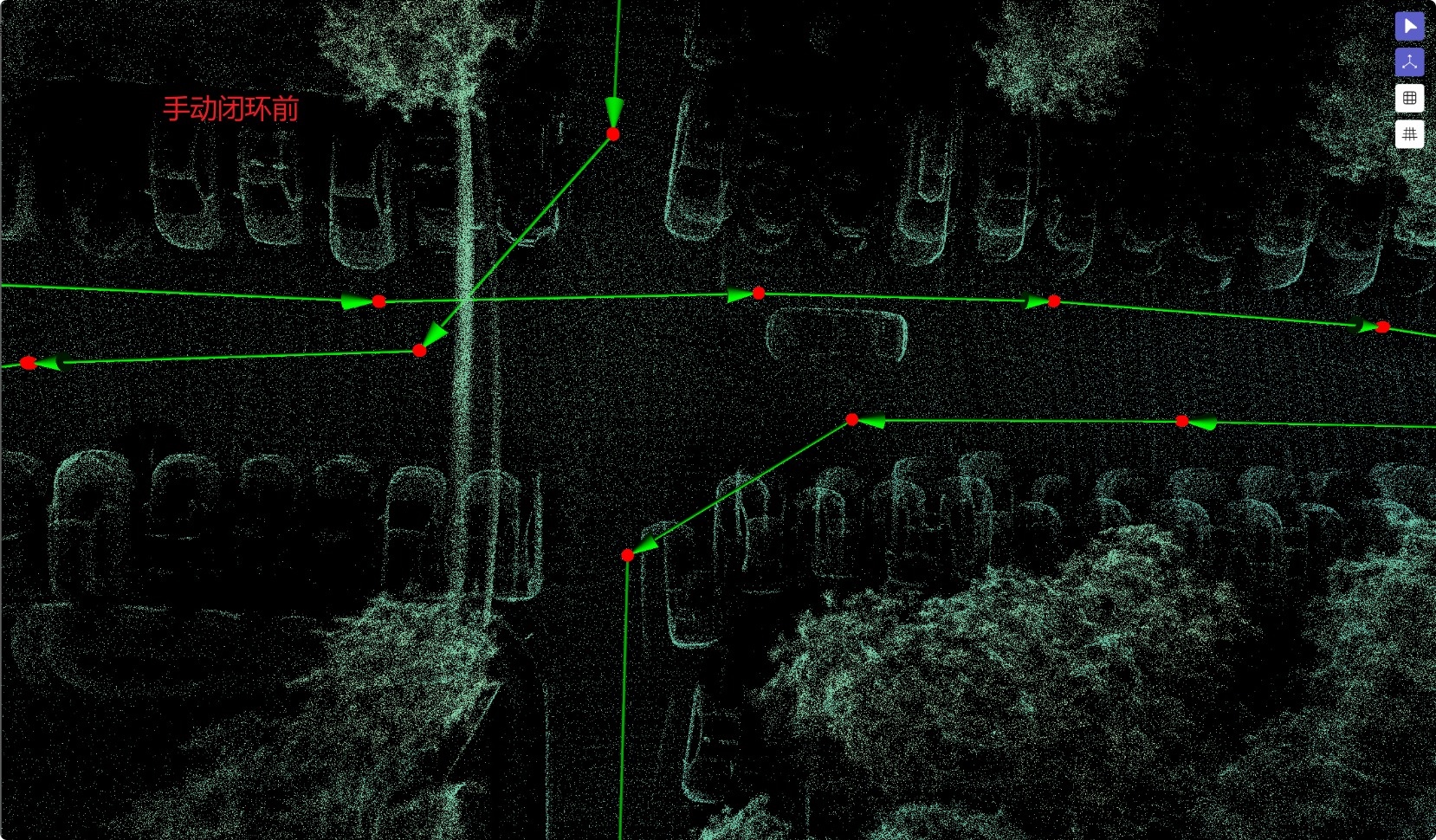

手动闭环前1

手动闭环后1 武汉大学信息学部室外停车场，俯视图

闭环检测在 SLAM 中的重要性

累积误差问题

SLAM 系统在长期运行过程中，由于传感器噪声和运动估计误差的累积，会导致建图结果出现明显的漂移和不一致性。这种现象在大规模环境建图中尤为明显：

// 累积误差示例：里程计漂移模拟
const odometryDrift = {
  position: { x: 0, y: 0, z: 0 },
  orientation: { x: 0, y: 0, z: 0, w: 1 },

  // 每帧累积的误差
  accumulateError(deltaTime) {
    const noiseScale = 0.001;
    this.position.x += Math.random() * noiseScale * deltaTime;
    this.position.y += Math.random() * noiseScale * deltaTime;
    this.position.z += Math.random() * noiseScale * deltaTime;
  },
};

闭环检测的解决方案

闭环检测通过识别机器人重新访问之前到过的位置，建立约束关系来纠正累积误差。手动闭环检测的优势在于：

  1. 高精度配准：人工干预可以实现更精确的点云配准
  2. 复杂场景适应：在自动算法失效的场景下仍能工作
  3. 参数可控：可以精确控制闭环约束的权重和置信度
  4. 质量保证：通过可视化验证确保闭环质量

React Three Fiber 技术栈选择

为什么选择 R3F？

React Three Fiber (R3F) 是 Three.js 的 React 渲染器，为构建 3D 应用提供了声明式的开发范式：

// 传统Three.js写法
const geometry = new THREE.BoxGeometry(1, 1, 1);
const material = new THREE.MeshBasicMaterial({ color: 0x00ff00 });
const cube = new THREE.Mesh(geometry, material);
scene.add(cube);

// R3F声明式写法
<mesh>
  <boxGeometry args={[1, 1, 1]} />
  <meshBasicMaterial color="green" />
</mesh>;

核心依赖配置

{
  "dependencies": {
    "@react-three/fiber": "^8.15.12",
    "@react-three/drei": "^9.88.17",
    "three": "^0.158.0",
    "react": "^18.2.0",
    "@types/three": "^0.158.3"
  }
}

系统架构设计

整体架构图

graph TB
    A[点云数据输入] --> B[数据预处理]
    B --> C[React Three Fiber渲染器]
    C --> D[双帧点云显示]
    D --> E[PivotControls交互]
    E --> F[变换矩阵计算]
    F --> G[闭环参数输出]
    G --> H[SLAM后端优化]

核心组件结构

// 系统主组件结构
const SLAMLoopClosureSystem = () => {
  return (
    <div className="w-full h-screen">
      <Canvas camera={{ position: [5, 5, 5] }}>
        {/* 场景基础设置 */}
        <SceneSetup />

        {/* 双点云渲染 */}
        <PointCloudRenderer
          referenceFrame={referencePointCloud}
          currentFrame={currentPointCloud}
        />

        {/* 交互控制 */}
        <InteractionControls />

        {/* 用户界面覆层 */}
        <Html>
          <LoopClosurePanel />
        </Html>
      </Canvas>
    </div>
  );
};

点云数据结构与加载

点云数据格式定义

interface PointCloudFrame {
  id: string;
  timestamp: number;
  points: Float32Array; // [x, y, z, x, y, z, ...]
  colors?: Float32Array; // [r, g, b, r, g, b, ...]
  normals?: Float32Array; // [nx, ny, nz, ...]
  intensity?: Float32Array; // 强度信息
  pose: {
    position: [number, number, number];
    rotation: [number, number, number, number]; // quaternion
  };
}

interface LoopClosureCandidate {
  referenceFrameId: string;
  currentFrameId: string;
  initialTransform?: Matrix4;
  confidence: number;
}

点云加载与预处理

const usePointCloudLoader = (frameData) => {
  const [pointCloud, setPointCloud] = useState(null);

  useEffect(() => {
    const loadPointCloud = async () => {
      // 点云数据预处理
      const processedPoints = preprocessPointCloud(frameData.points);

      // 创建Three.js几何体
      const geometry = new BufferGeometry();
      geometry.setAttribute(
        "position",
        new BufferAttribute(processedPoints, 3)
      );

      if (frameData.colors) {
        geometry.setAttribute(
          "color",
          new BufferAttribute(frameData.colors, 3)
        );
      }

      setPointCloud({
        geometry,
        material: new PointsMaterial({
          size: 0.02,
          vertexColors: true,
          transparent: true,
          opacity: 0.8,
        }),
      });
    };

    loadPointCloud();
  }, [frameData]);

  return pointCloud;
};

// 点云预处理函数
const preprocessPointCloud = (rawPoints) => {
  // 下采样减少渲染负担
  const downsampledPoints = voxelDownsample(rawPoints, 0.05);

  // 离群点移除
  const cleanPoints = removeOutliers(downsampledPoints);

  // 法向量估计（可选）
  const pointsWithNormals = estimateNormals(cleanPoints);

  return pointsWithNormals;
};

双点云渲染实现

参考帧与当前帧显示

const DualPointCloudRenderer = ({
  referenceFrame,
  currentFrame,
  showReference = true,
  showCurrent = true,
}) => {
  const referenceCloud = usePointCloudLoader(referenceFrame);
  const currentCloud = usePointCloudLoader(currentFrame);

  return (
    <group>
      {/* 参考帧点云 - 固定显示，蓝色 */}
      {showReference && referenceCloud && (
        <points
          geometry={referenceCloud.geometry}
          material={
            new PointsMaterial({
              color: 0x0066ff,
              size: 0.02,
              transparent: true,
              opacity: 0.6,
            })
          }
        />
      )}

      {/* 当前帧点云 - 可交互，红色 */}
      {showCurrent && currentCloud && (
        <PivotControls
          anchor={[0, 0, 0]}
          depthTest={false}
          lineWidth={3}
          scale={0.8}
          onDrag={(local, deltaL, world, deltaW) => {
            // 实时更新变换矩阵
            updateTransformMatrix(world);
          }}
        >
          <points
            geometry={currentCloud.geometry}
            material={
              new PointsMaterial({
                color: 0xff0066,
                size: 0.02,
                transparent: true,
                opacity: 0.8,
              })
            }
          />
        </PivotControls>
      )}
    </group>
  );
};

颜色编码方案

为了更好地区分两帧点云并观察配准效果，我们采用以下颜色编码策略：

const ColorSchemes = {
  reference: {
    base: 0x4a90e2, // 蓝色系
    highlight: 0x7bb3f0, // 高亮蓝
    opacity: 0.6,
  },
  current: {
    base: 0xe24a4a, // 红色系
    highlight: 0xf07b7b, // 高亮红
    opacity: 0.8,
  },
  overlap: {
    base: 0x50e3c2, // 青绿色，表示重叠区域
    opacity: 0.9,
  },
};

// 动态颜色计算
const calculateOverlapColor = (
  referencePoints,
  currentPoints,
  threshold = 0.1
) => {
  const colors = new Float32Array(currentPoints.length);

  for (let i = 0; i < currentPoints.length / 3; i++) {
    const point = new Vector3(
      currentPoints[i * 3],
      currentPoints[i * 3 + 1],
      currentPoints[i * 3 + 2]
    );

    // 查找最近邻点
    const distance = findNearestDistance(point, referencePoints);

    if (distance < threshold) {
      // 重叠区域 - 青绿色
      colors[i * 3] = 0.31; // R
      colors[i * 3 + 1] = 0.89; // G
      colors[i * 3 + 2] = 0.76; // B
    } else {
      // 非重叠区域 - 保持原色
      colors[i * 3] = 0.89; // R
      colors[i * 3 + 1] = 0.29; // G
      colors[i * 3 + 2] = 0.4; // B
    }
  }

  return colors;
};

PivotControls 交互实现

基础控制设置

const InteractivePivotControls = ({
  children,
  onTransformChange,
  initialTransform = new Matrix4(),
}) => {
  const [currentTransform, setCurrentTransform] = useState(initialTransform);

  return (
    <PivotControls
      // 控制器外观设置
      anchor={[0, 0, 0]}
      depthTest={false}
      lineWidth={2}
      axisColors={["#ff0000", "#00ff00", "#0000ff"]}
      scale={100}
      // 控制模式
      disableRotations={false}
      disableScaling={true} // 禁用缩放，保持点云真实尺寸
      // 交互回调
      onDrag={(local, deltaL, world, deltaW) => {
        handleTransformUpdate(world, deltaW);
      }}
      onDragStart={() => {
        // 开始拖拽时的处理
        console.log("开始变换操作");
      }}
      onDragEnd={() => {
        // 结束拖拽时保存当前状态
        saveTransformState(currentTransform);
      }}
    >
      {children}
    </PivotControls>
  );
};

变换矩阵处理

const TransformManager = () => {
  const [transformMatrix, setTransformMatrix] = useState(new Matrix4());
  const [transformHistory, setTransformHistory] = useState([]);

  // 处理变换更新
  const handleTransformUpdate = useCallback((worldMatrix, delta) => {
    // 更新当前变换矩阵
    setTransformMatrix(worldMatrix.clone());

    // 分解变换矩阵获取位置、旋转、缩放
    const position = new Vector3();
    const rotation = new Quaternion();
    const scale = new Vector3();
    worldMatrix.decompose(position, rotation, scale);

    // 转换为欧拉角（便于显示）
    const euler = new Euler().setFromQuaternion(rotation, "XYZ");

    // 更新UI显示
    updateTransformUI({
      position: position.toArray(),
      rotation: [
        THREE.MathUtils.radToDeg(euler.x),
        THREE.MathUtils.radToDeg(euler.y),
        THREE.MathUtils.radToDeg(euler.z),
      ],
    });

    // 实时计算配准质量指标
    const alignmentScore = calculateAlignmentScore(worldMatrix);
    updateAlignmentScore(alignmentScore);
  }, []);

  // 重置变换
  const resetTransform = () => {
    setTransformMatrix(new Matrix4());
  };

  // 撤销操作
  const undoTransform = () => {
    if (transformHistory.length > 0) {
      const previousTransform = transformHistory.pop();
      setTransformMatrix(previousTransform);
      setTransformHistory([...transformHistory]);
    }
  };

  return {
    transformMatrix,
    handleTransformUpdate,
    resetTransform,
    undoTransform,
  };
};

闭环参数存储与管理

const LoopClosureManager = () => {
  const [loopClosures, setLoopClosures] = useState([]);
  const [currentSession, setCurrentSession] = useState(null);

  // 保存新的闭环参数
  const saveLoopClosure = useCallback(
    (params) => {
      const newLoopClosure = {
        id: generateUUID(),
        timestamp: Date.now(),
        ...params,
        isVerified: true,
        weight: calculateWeight(params.alignmentScore),
      };

      setLoopClosures((prev) => [...prev, newLoopClosure]);

      // 自动保存到本地存储
      localStorage.setItem(
        "loopClosures",
        JSON.stringify([...loopClosures, newLoopClosure])
      );

      // 可选：发送到后端
      sendToBackend(newLoopClosure);
    },
    [loopClosures]
  );

  // 删除闭环参数
  const deleteLoopClosure = useCallback((id) => {
    setLoopClosures((prev) => prev.filter((lc) => lc.id !== id));
  }, []);

  // 批量导出
  const exportLoopClosures = useCallback(() => {
    const exportData = {
      version: "1.0",
      timestamp: new Date().toISOString(),
      loopClosures: loopClosures,
      summary: {
        totalCount: loopClosures.length,
        averageConfidence:
          loopClosures.reduce(
            (sum, lc) => sum + lc.alignmentScore.confidence,
            0
          ) / loopClosures.length,
      },
    };

    const blob = new Blob([JSON.stringify(exportData, null, 2)], {
      type: "application/json",
    });

    const url = URL.createObjectURL(blob);
    const a = document.createElement("a");
    a.href = url;
    a.download = `loop_closures_${Date.now()}.json`;
    a.click();
    URL.revokeObjectURL(url);
  }, [loopClosures]);

  return {
    loopClosures,
    saveLoopClosure,
    deleteLoopClosure,
    exportLoopClosures,
  };
};

手动闭环前2

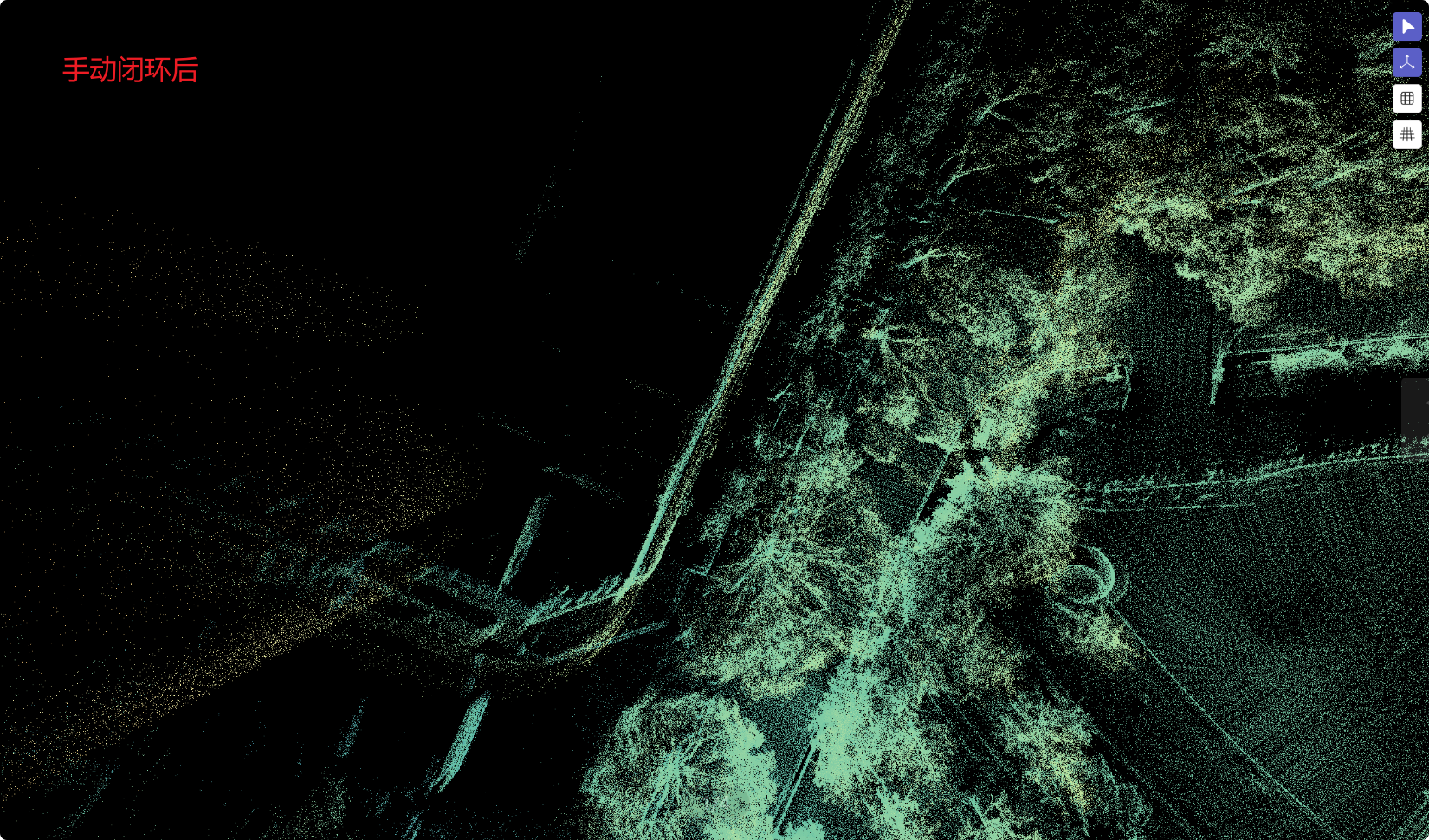

手动闭环后2 武汉大学信息学部实验大楼，俯视图

总结

本文详细介绍了基于 React Three Fiber 实现 SLAM 手动闭环检测系统的完整方案。通过将传统的 SLAM 技术与现代 Web3D 技术相结合，我们构建了一个直观、高效的交互式闭环检测工具。

系统优势

  1. 可视化直观：通过 3D 渲染直接观察点云配准效果
  2. 交互友好：利用 PivotControls 提供自然的变换操作体验
  3. 质量可控：实时计算配准质量指标，确保闭环可靠性
  4. 性能优化：通过多种策略保证大规模点云的流畅渲染
  5. 集成便利：标准化的数据接口便于与现有 SLAM 系统集成
